2750 RXJ

2750 RXJ
* Click on the image to view

High specifications – Huge outreach

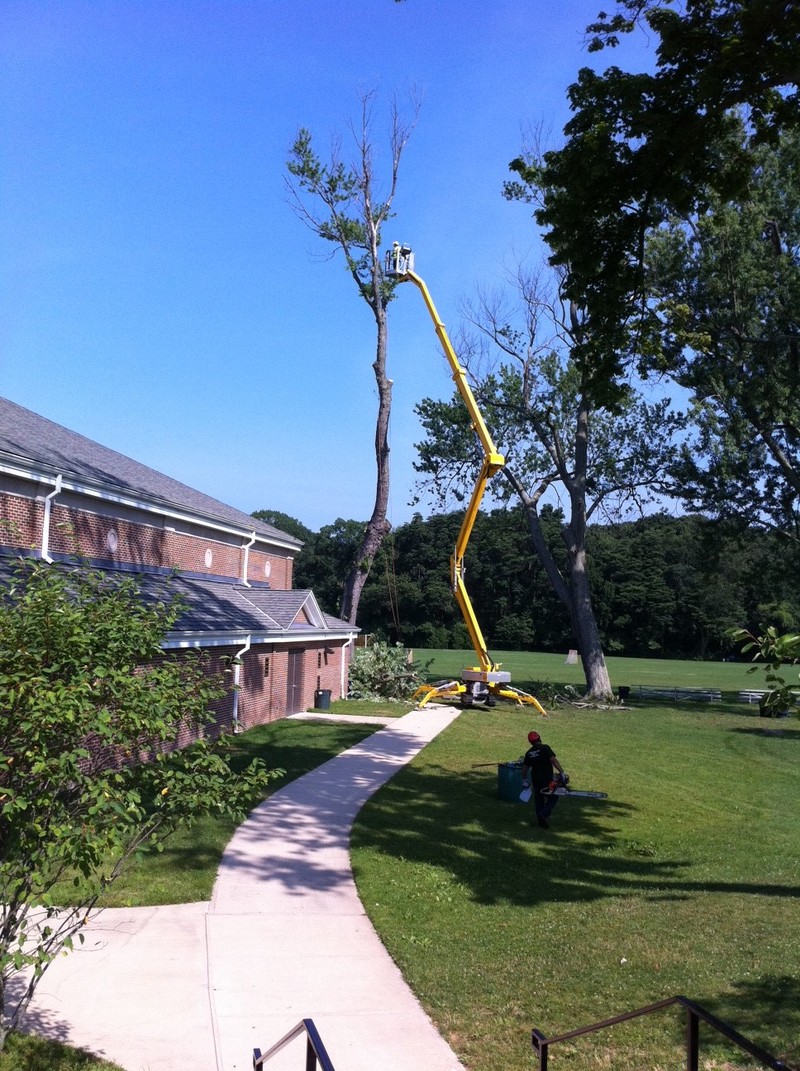

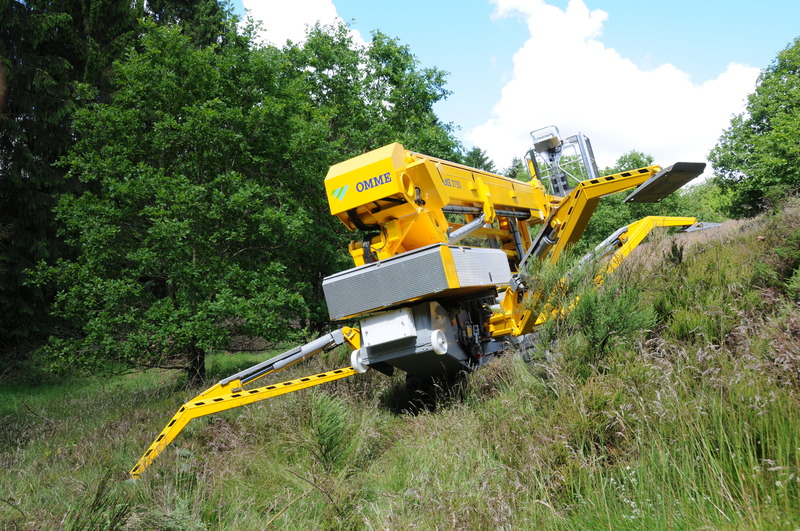

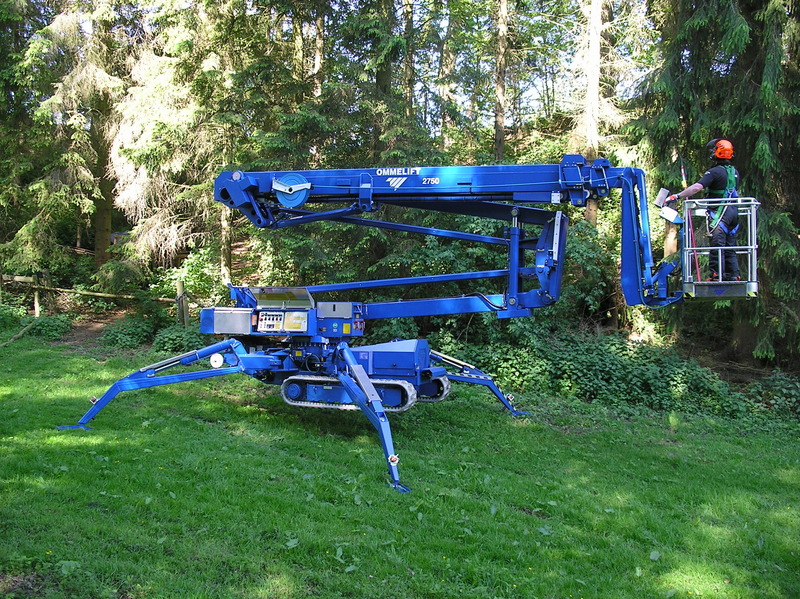

The diesel engine power allows the lift to traverse soft muddy terrain and grassed inclines. Gradeability is 35%, equivalent to 19.3°. Combined with the strong, non-skid crawler tracks the platform truly provides cross country access. The compact dimensions allow access in to narrow and awkward areas.

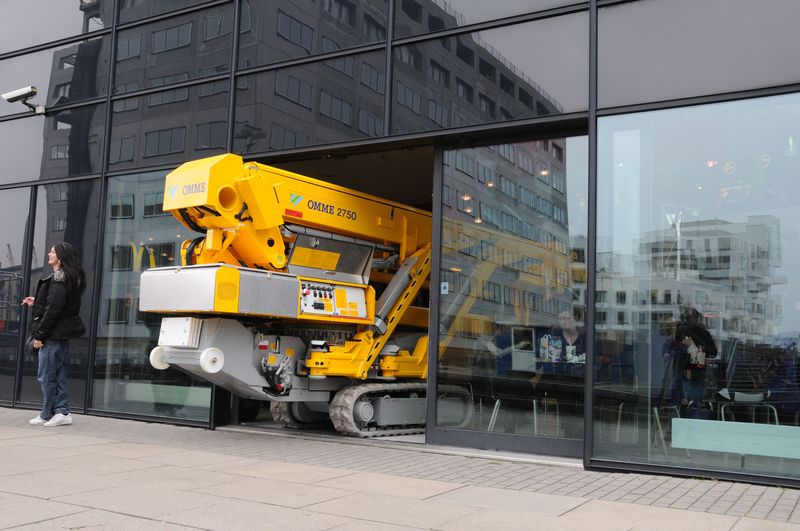

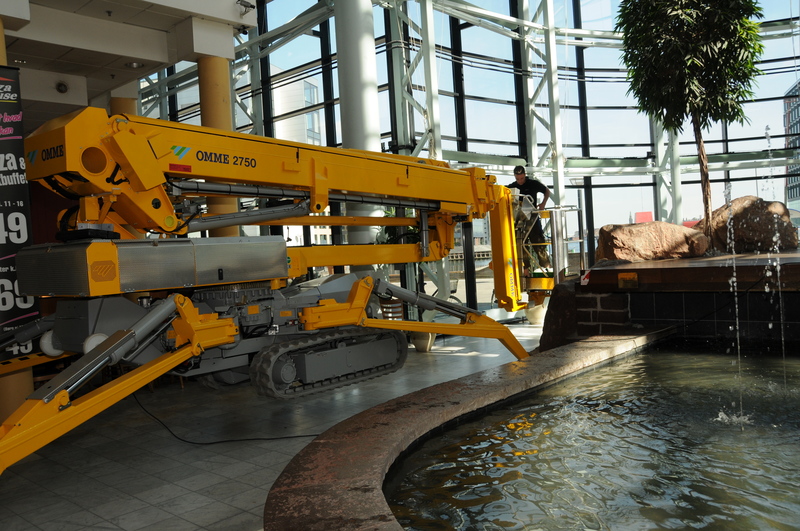

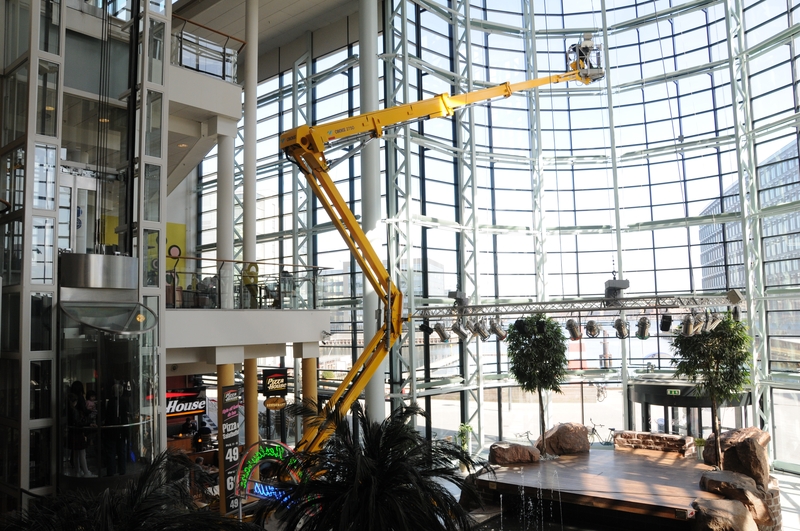

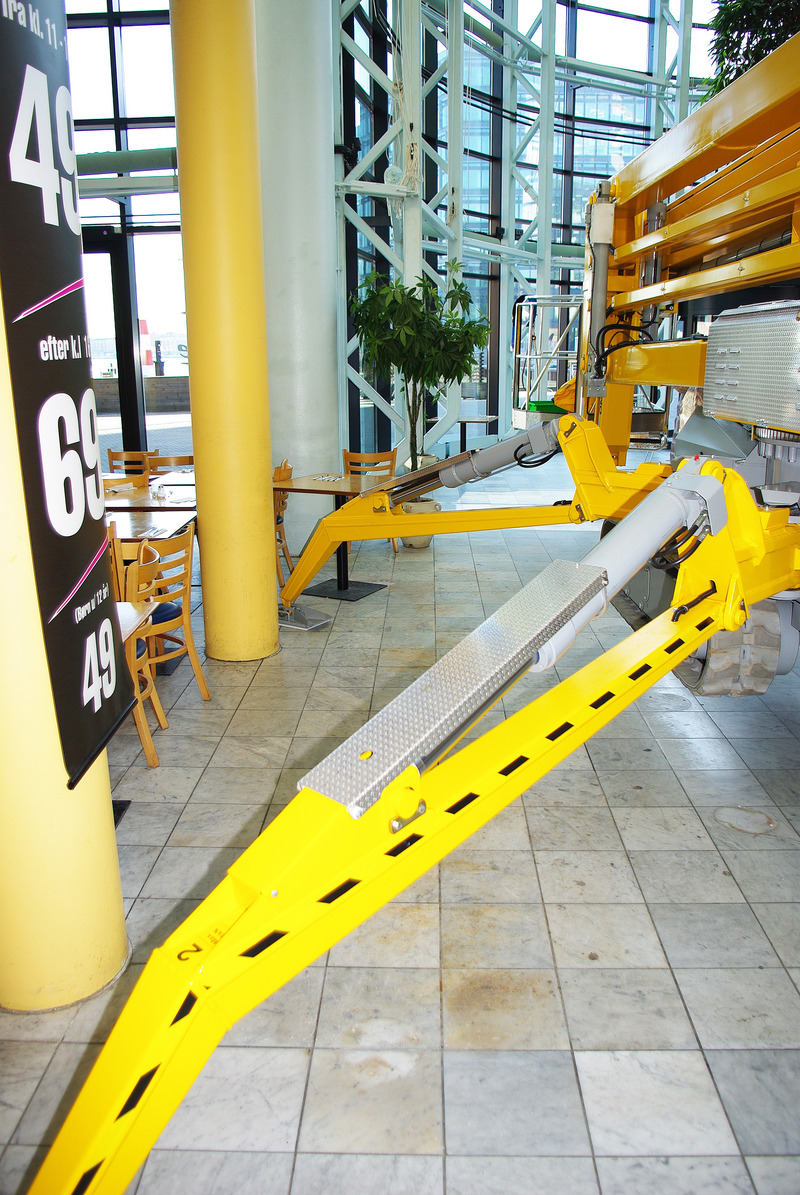

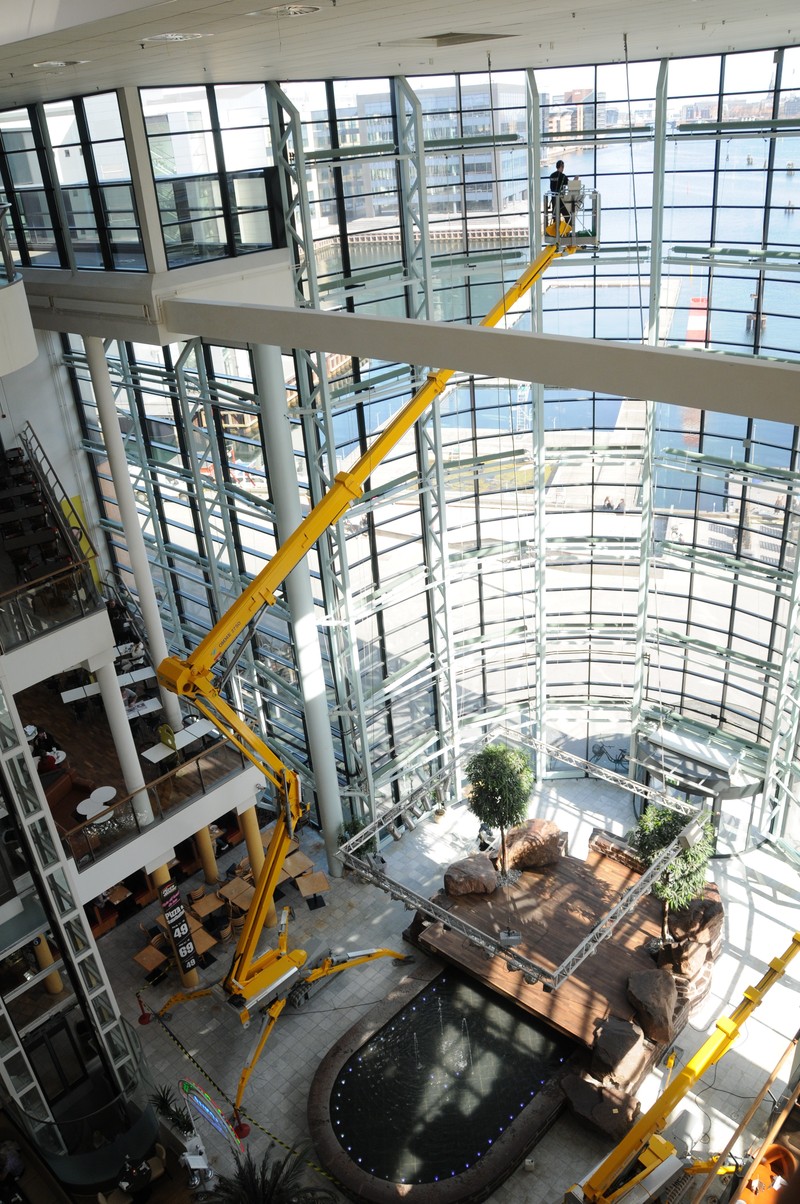

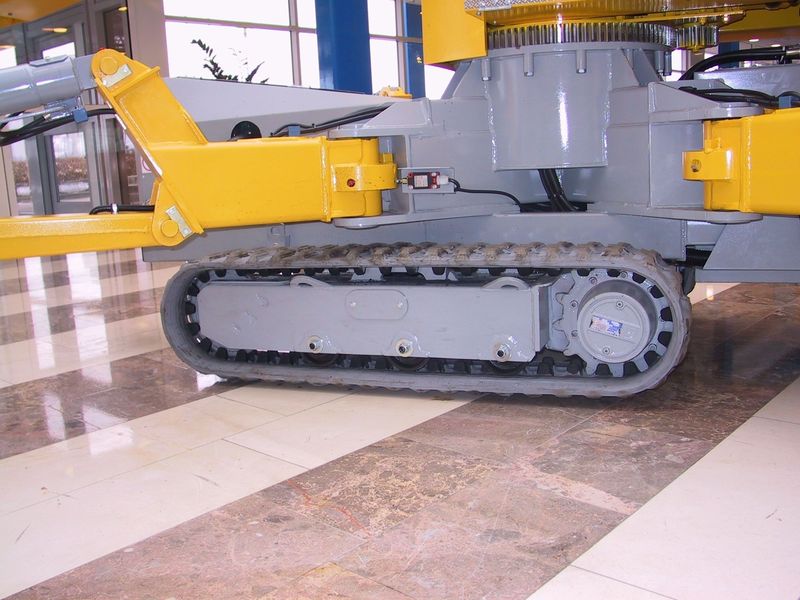

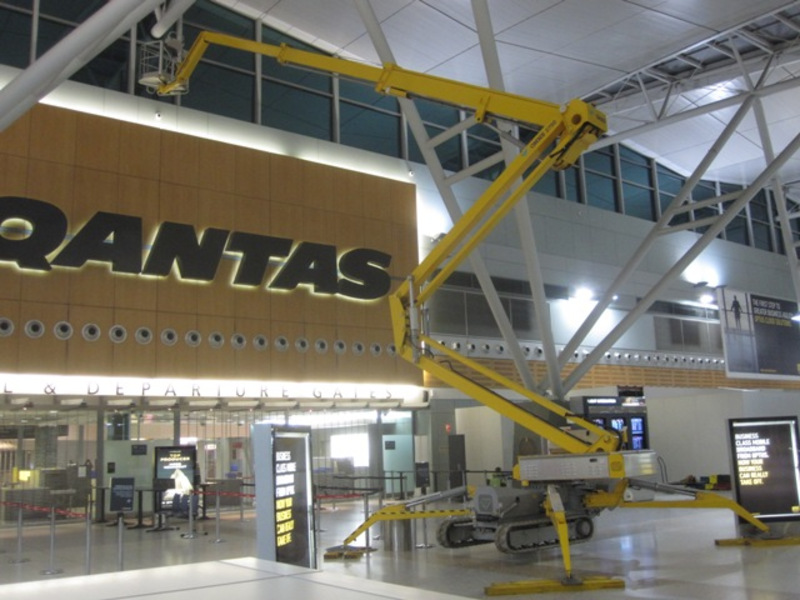

The all-terrain features are not only for park and woodland areas, but also for working internally for example in shopping centres. The average force from the tracks is only 30 N/cm². The low force and the non-marking tracks offer optimal protection when driving on vulnerable surfaces.

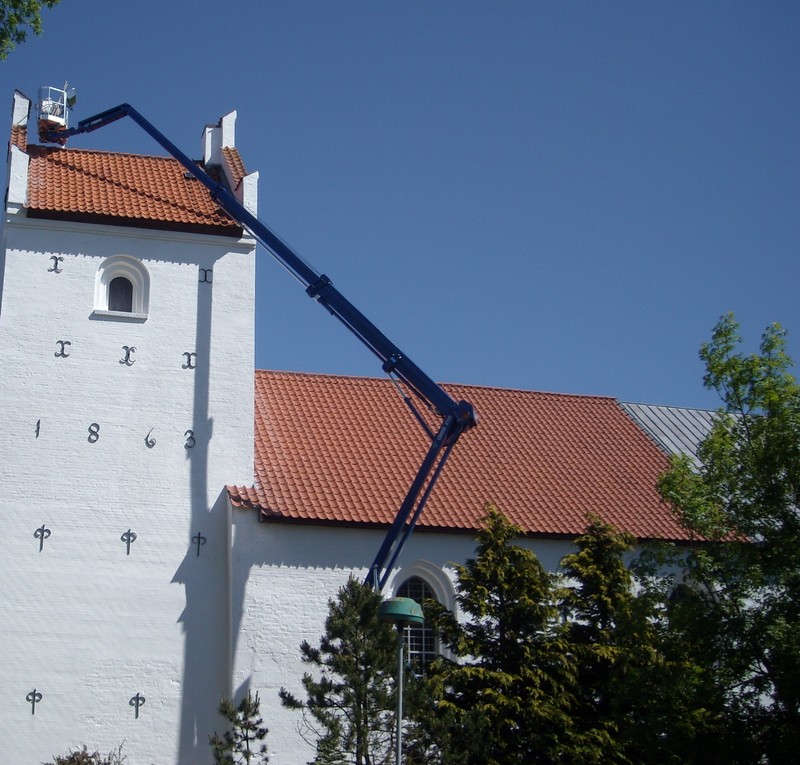

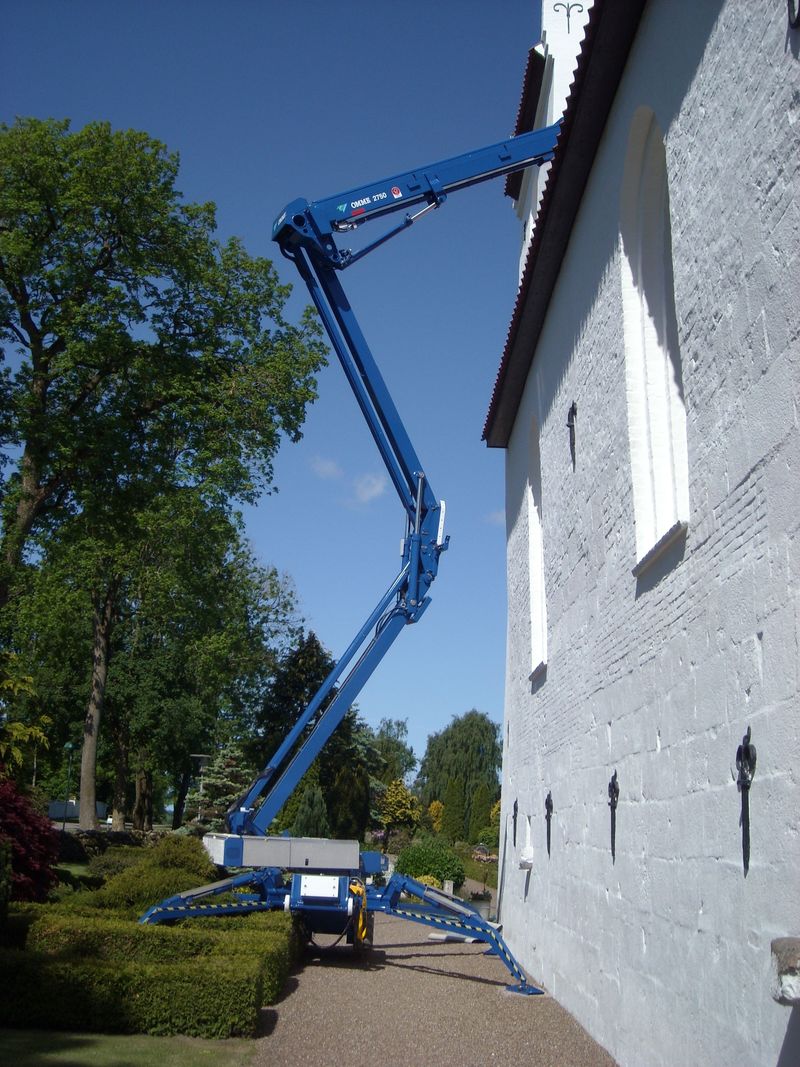

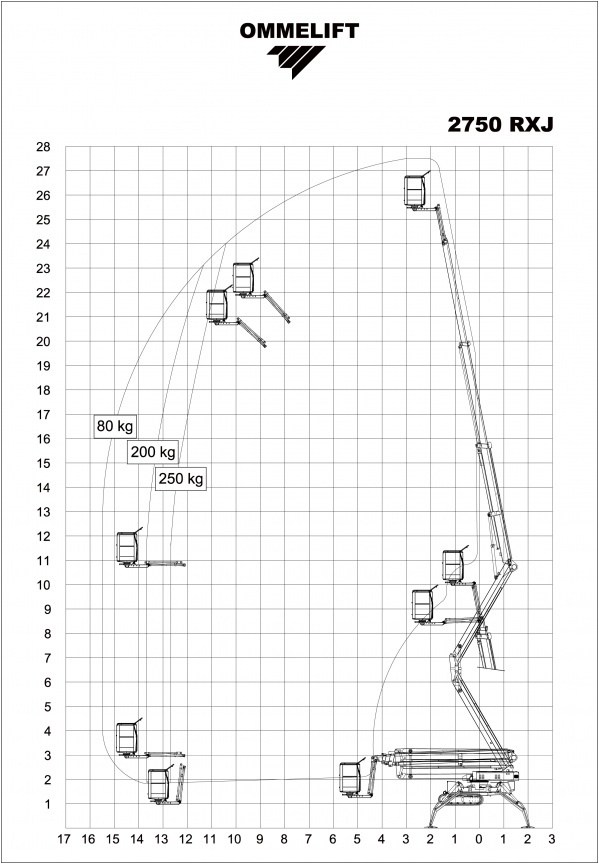

An outreach of up to 15.5 m and a zero tail swing articulating riser give an exceptional 10.5 m up and over reach. The long movable jib enables fine adjustment. A maximum working height of 27.5 m together with the exceptional outreach offer huge versatility in application. High utilisation means cost efficiency.

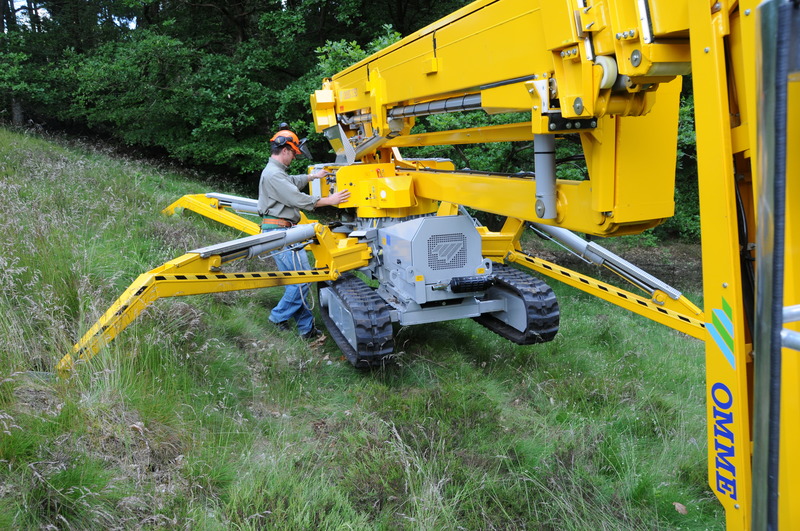

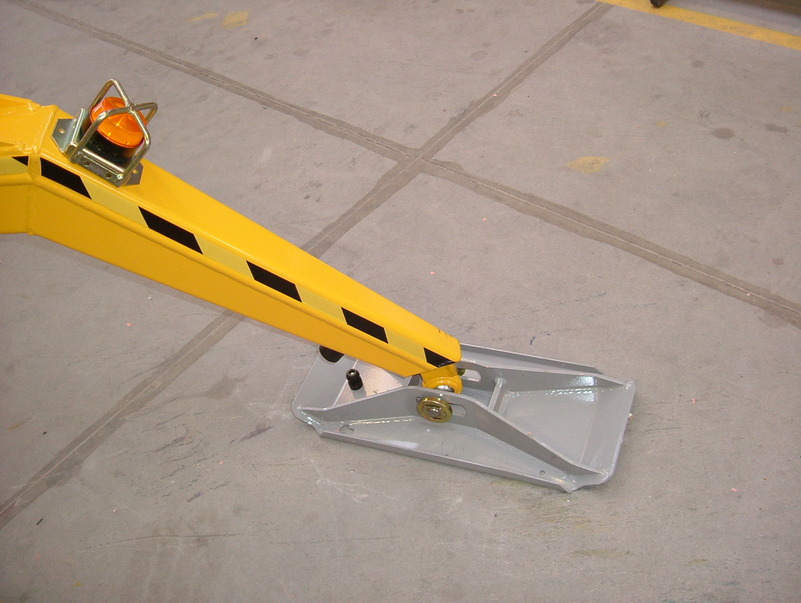

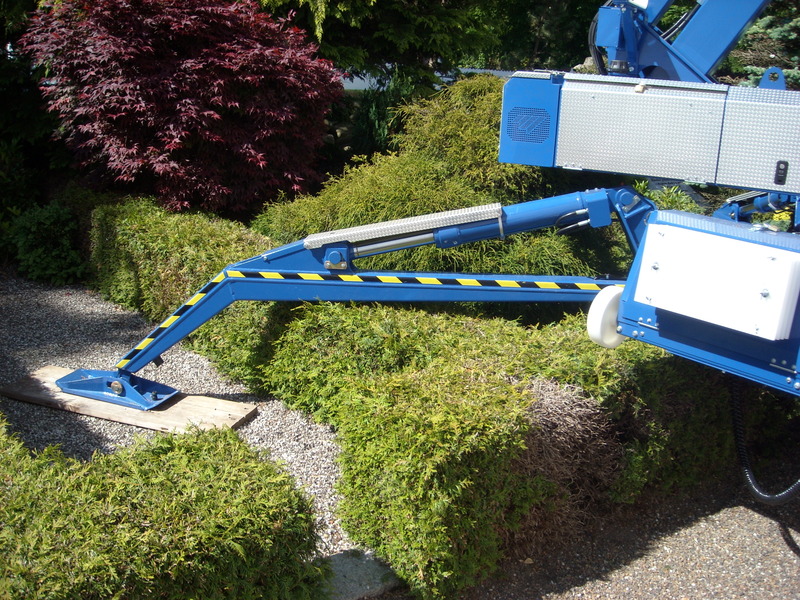

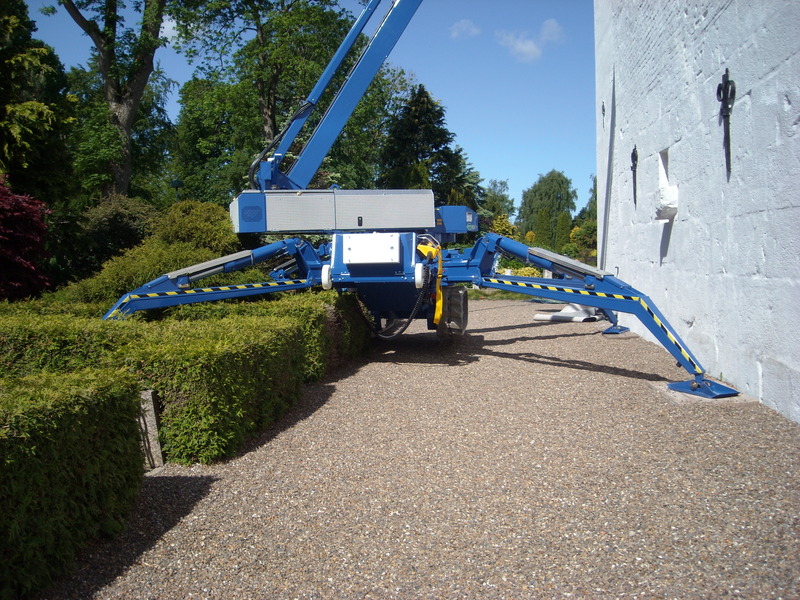

The manual levelling of the stabilizers ensures safe set up in the most difficult situations the first time and every time. Deployment is actually possible on uneven ground of up to 35%, allowing set up on hilly ground, steps or banks.

If you are interested please press Contact Form --> order

Technical features

Max. working height 27.5 m
Max. outreach 15.5 m
Basket size 1.25x0.8x1.1 m
Travelling length 7.50/6.75 m
Travelling height 2.19 m
Travelling width 1.50/1.10 m
Operational width 4.60/3.75 m
Rotation ± 355°
Max. basket load 250 kg
Total weight approx 5050 kg
Turntable basket ± 41°
Battery 24 V 400 Ah/5h
Charger 24 V 30 A
Transformer 24 V 50 A
Gradeability across slope up to 35 % 19.3 °
Gradeability up and down slope u...p to 35 % 19.3 °
Deployment ability procent 40 % 19.3 °
Diesel motor 14 kW 18.8 hp *2750 RXBDJ

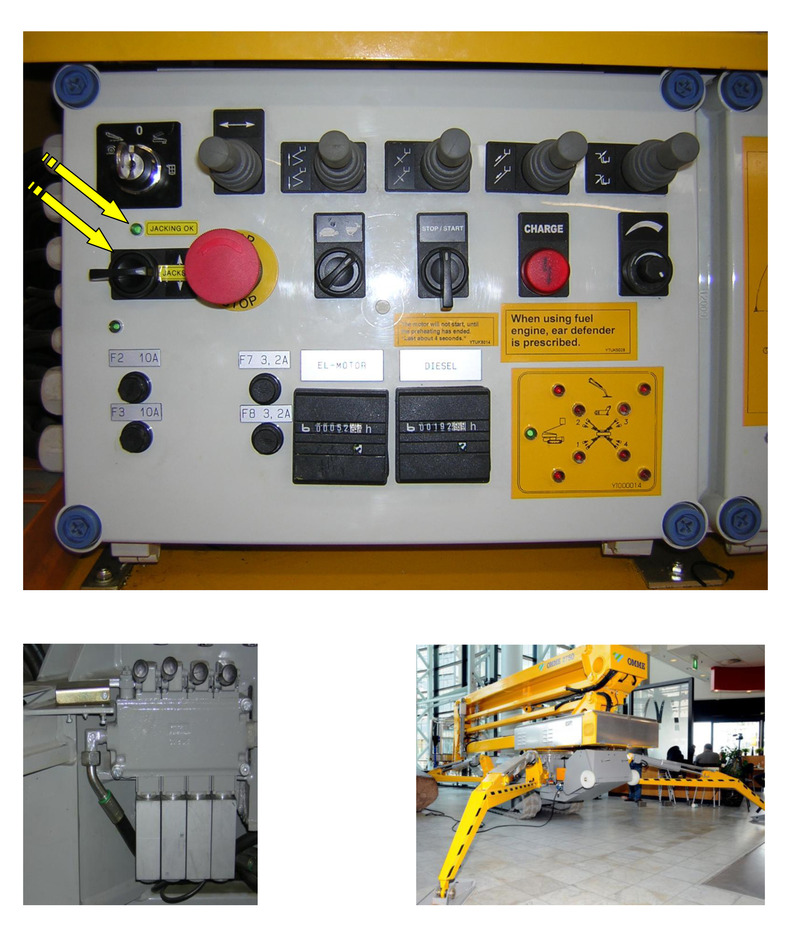

Automatic stabilizer levelling s...down Option
Flash lights - crawler Option
Non-marking tracks Option

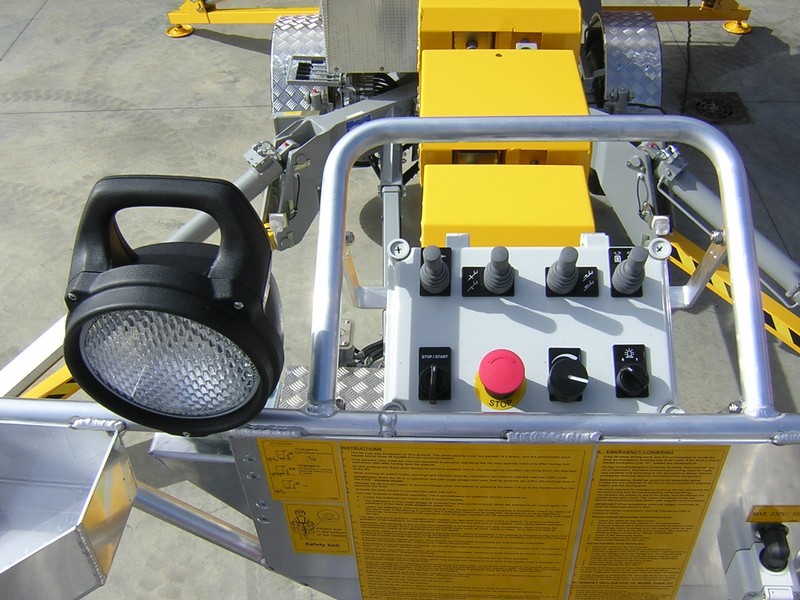

Spotlight in basket O16 Option

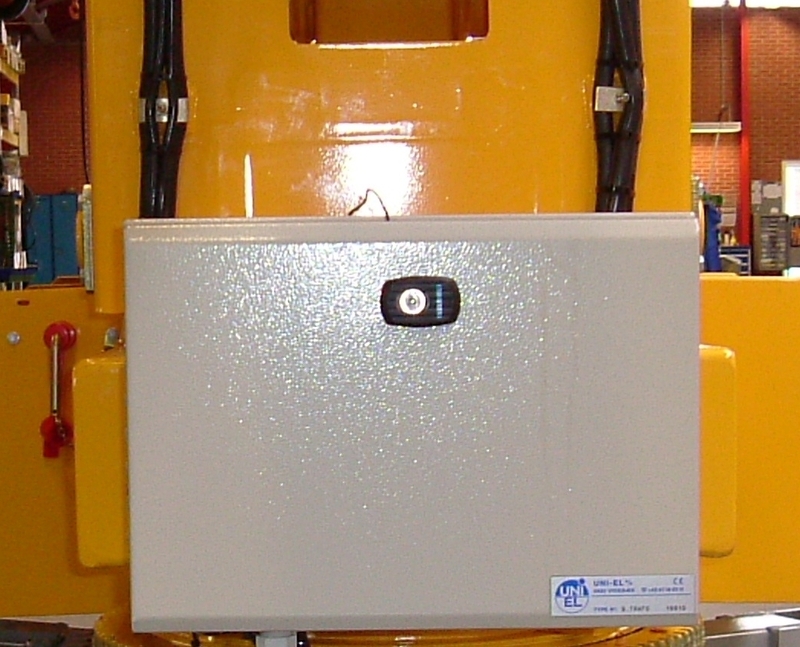

Transformer - crawler Option

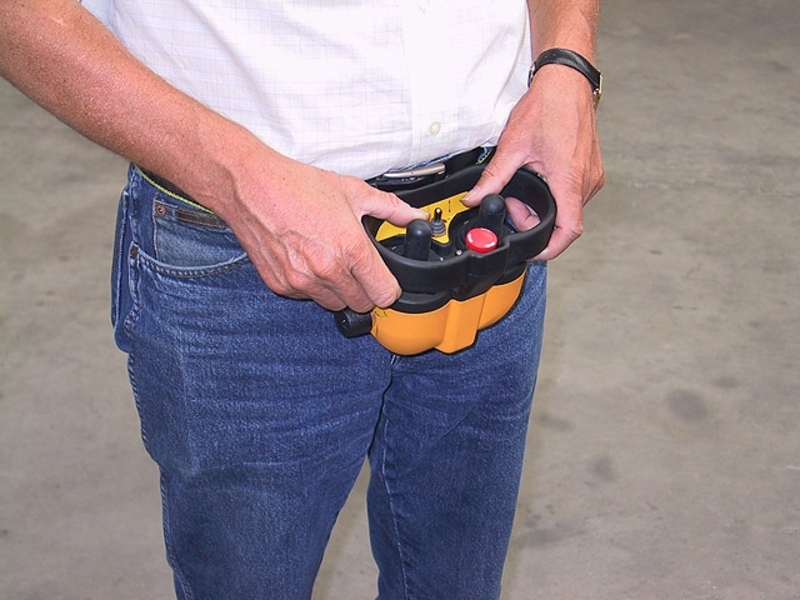

Wireless remote control (drive o...nly) Option
