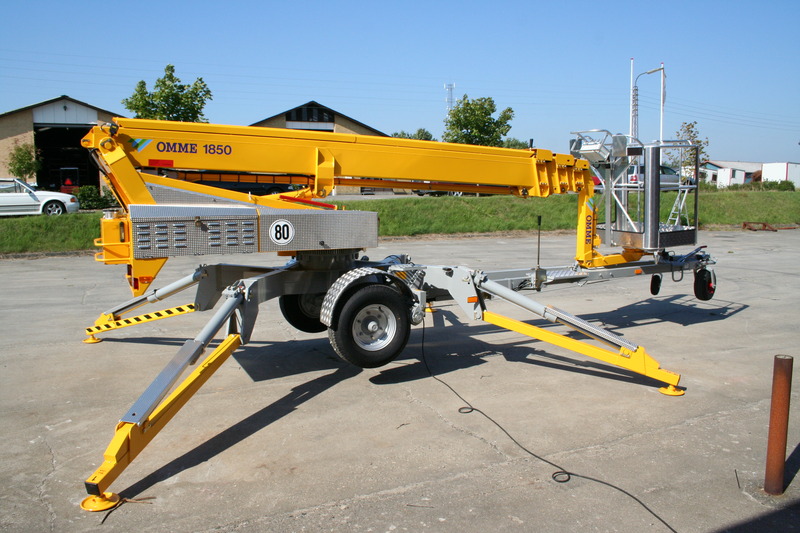

1850 E

1850 E
* Click on the image to view

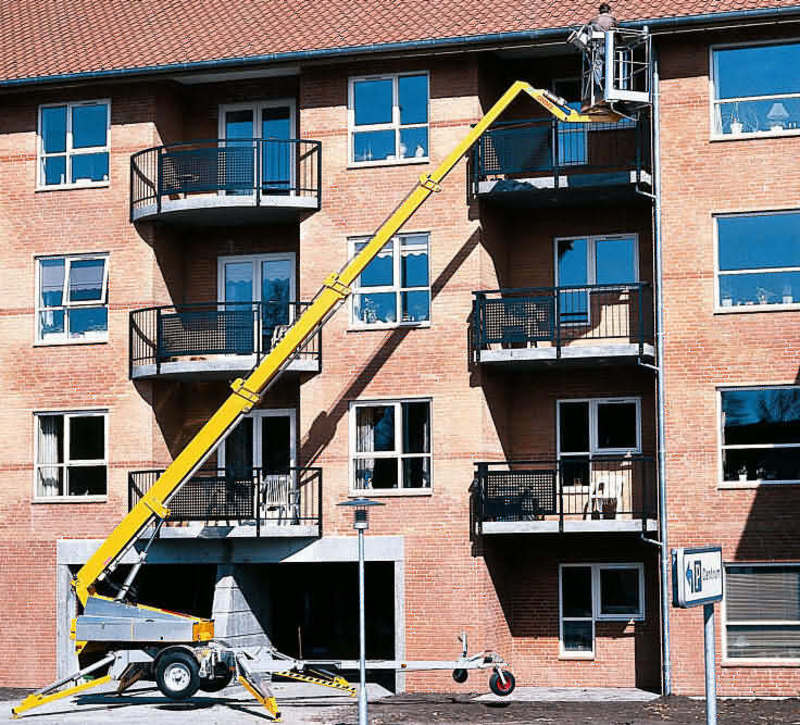

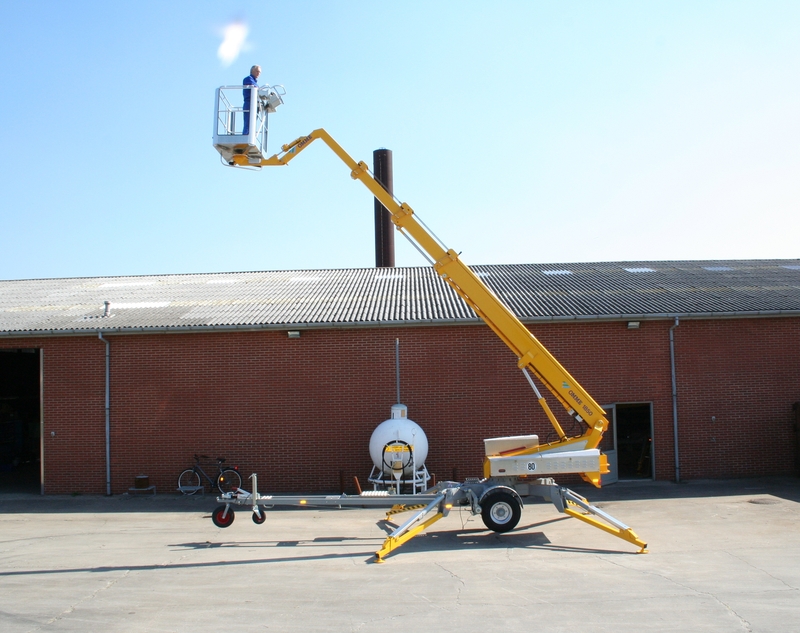

A stable lift – also during transport

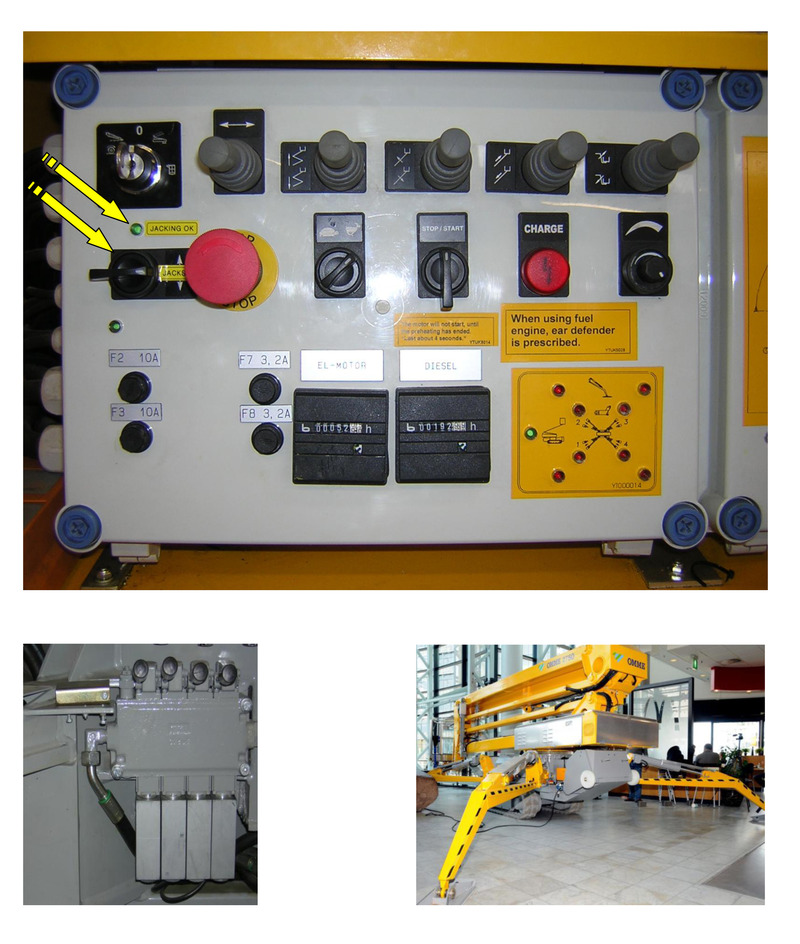

1850 E, 1850 EB and 1850 EBD are identical apart from their power sources. Standard features include hydraulic stabilizers with interlocks, basket rotation and proportional controls with dual controls to ground and basket. Design features include a basket mounting that forms a "fly" boom mounted to the top boom section and gives increased outreach over obstacles. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being shorter in travel length than most machines of this type, the 1850 E-series allows improved manoeuvrability and is particularly suited when mounted on to a chassis cab.

1850 E is mains powered 230 V/16 A and is especially suited, where continuous or extended operation is required.

1850 EB is powered by a heavy duty 24 V battery pack with built-in charger capable of charging the batteries whilst the platform is in use. 1850 EB is especially suited for jobs, without mains access.

If you are interested please press Contact Form --> order

Technical features

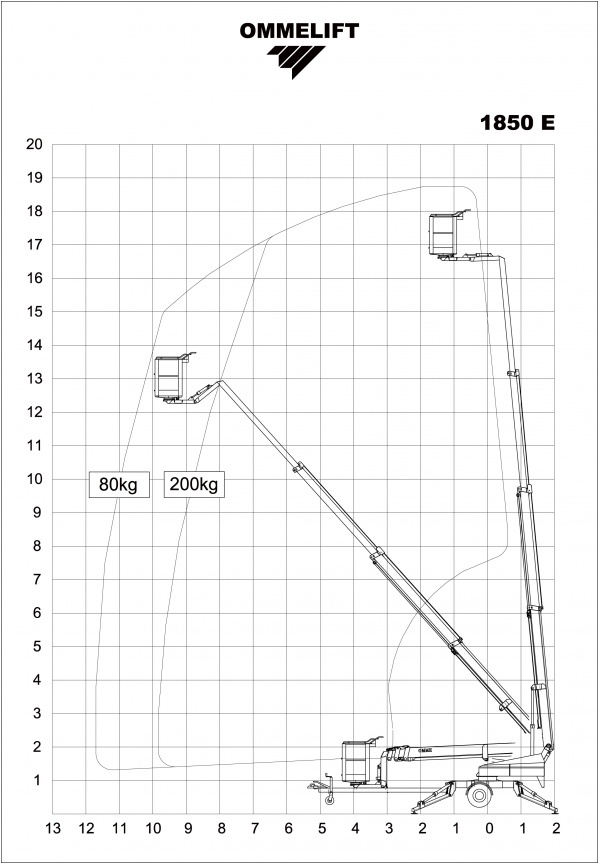

Max. working height 18.6 m
Max. outreach 11.7 m
Basket size 1.25x0.8x1.1 m

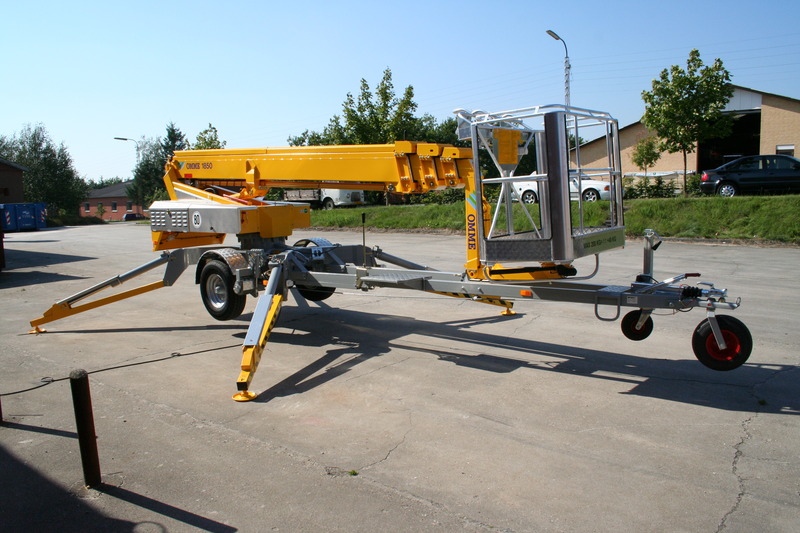

Travelling length 7.20 m
Travelling height 2.10 m
Travelling width 1.70 m
Operational width 4.25 m
Power supply 230 V 16 A
Rotation ± 400°
Max. basket load 200 kg
Total weight incl. propulsion 2230 kg
Turntable basket ± 41°
Battery 24 V 200 Ah/5h *1850EB
Charger 24 V 30 A *1850EB

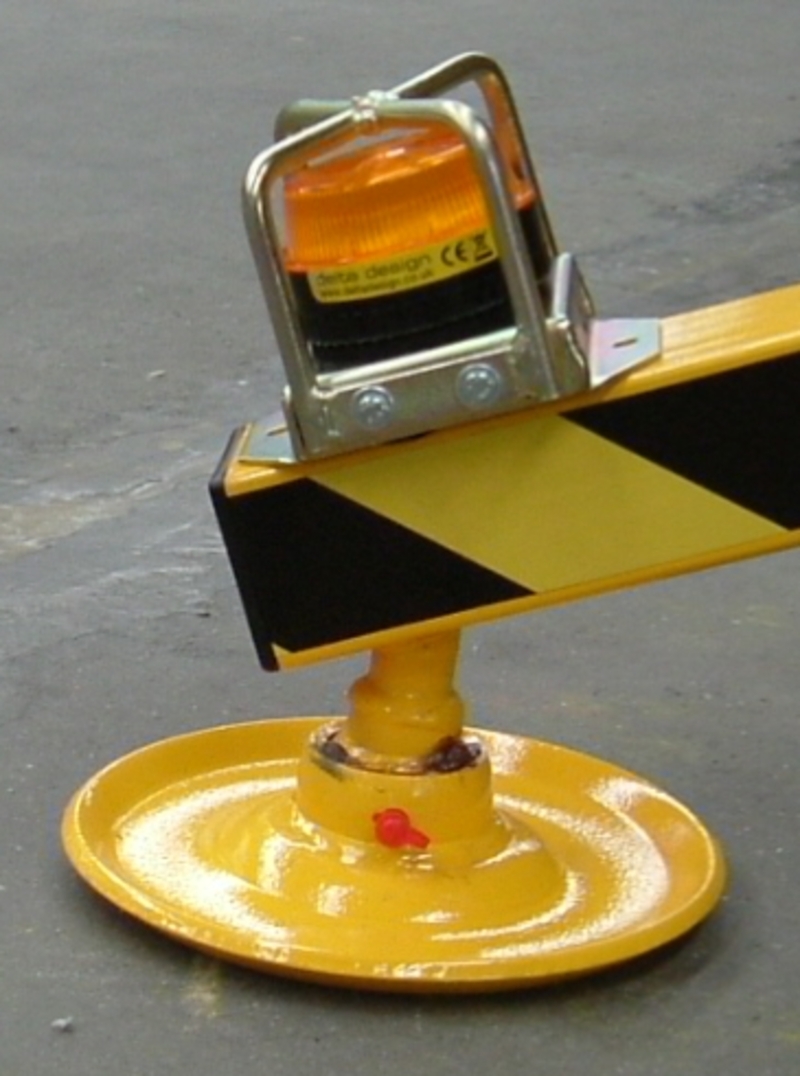

Flash lights Option

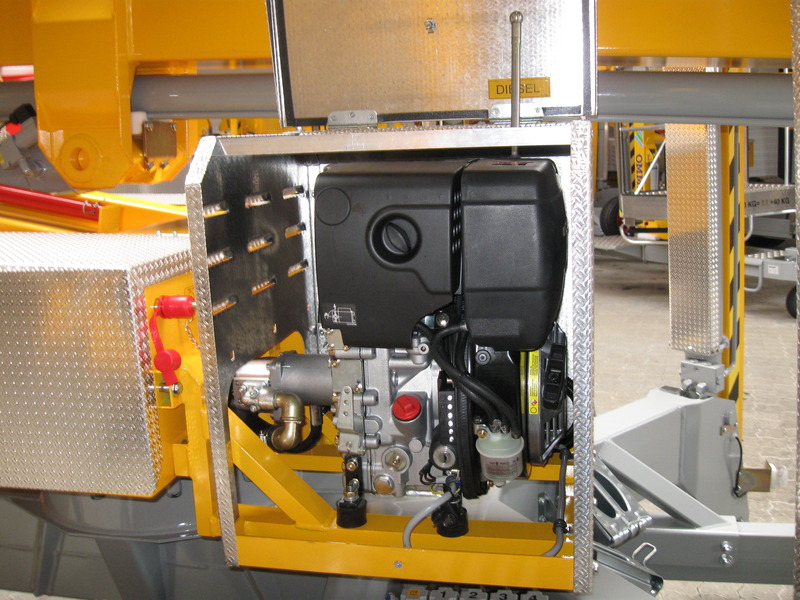

Hatz diesel engine with oil pump Option

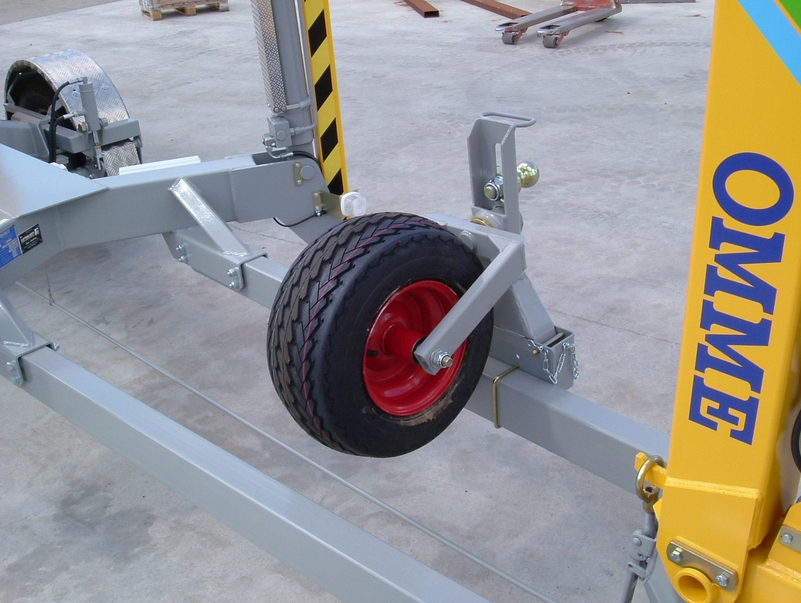

Holder for nose wheel Option

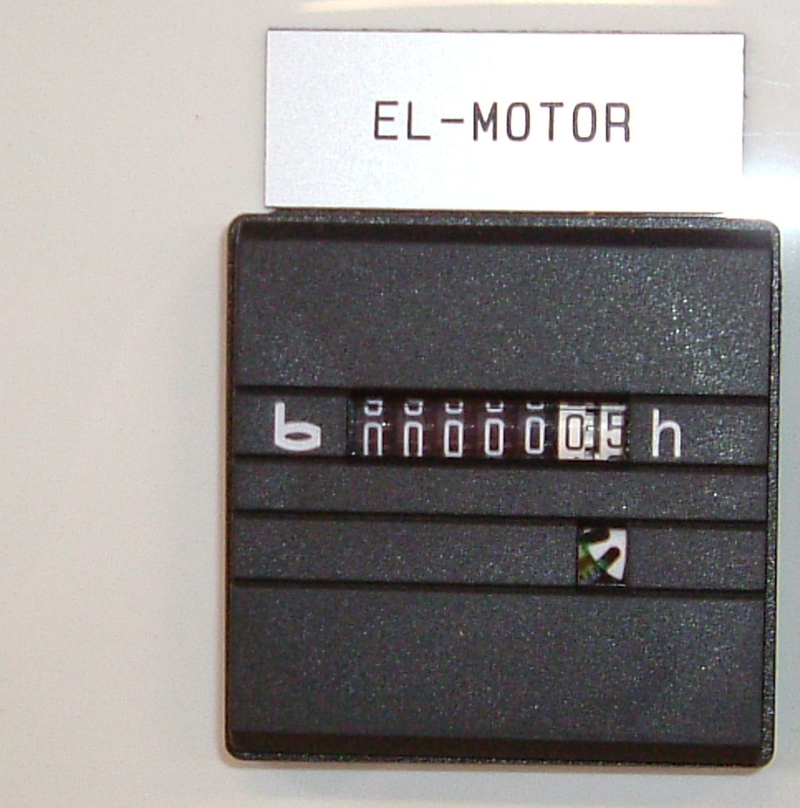

Hour meter Option

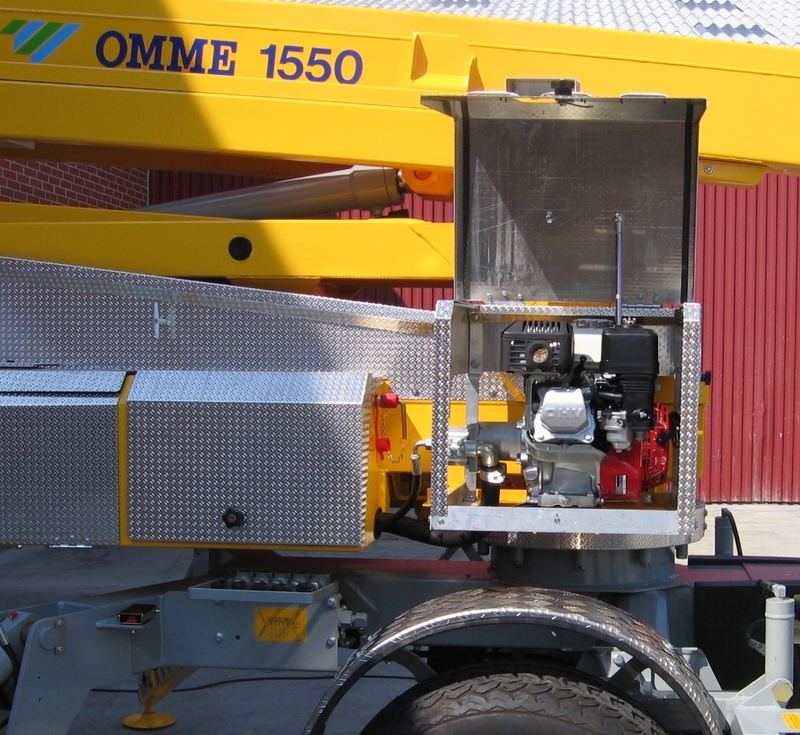

Petrol engine with oil pump Option

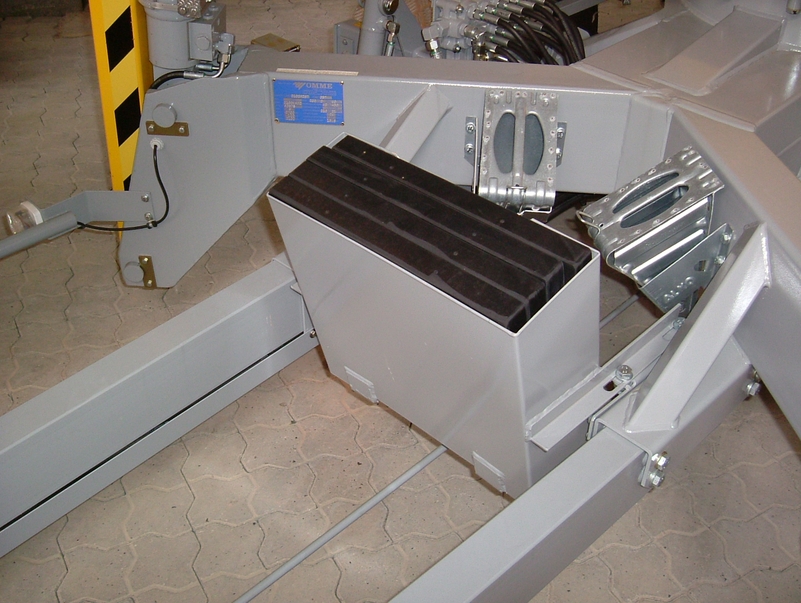

Plates for stabilizer Option

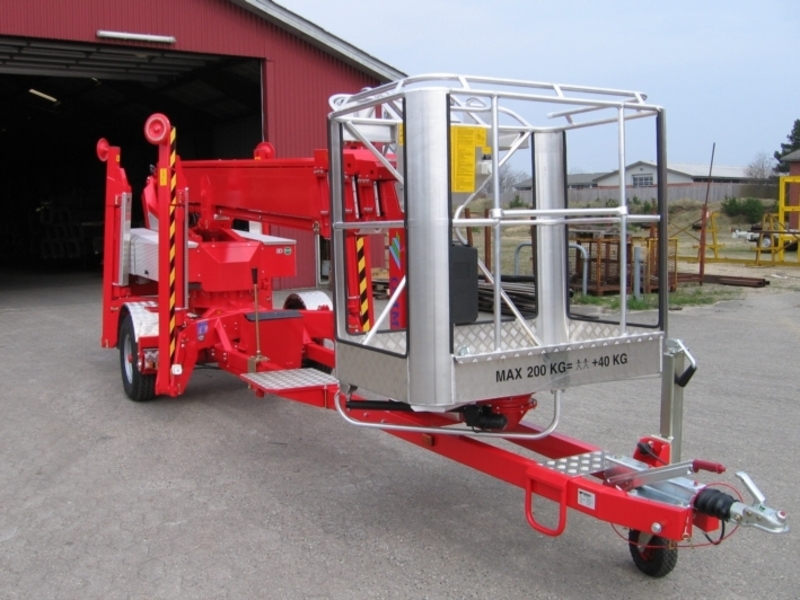

Special colour Option

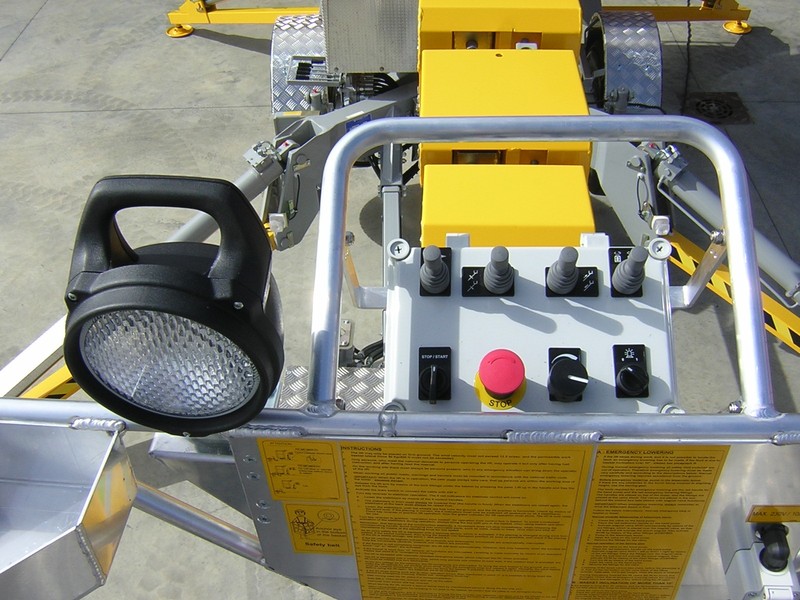

Spotlight in basket O16 Option

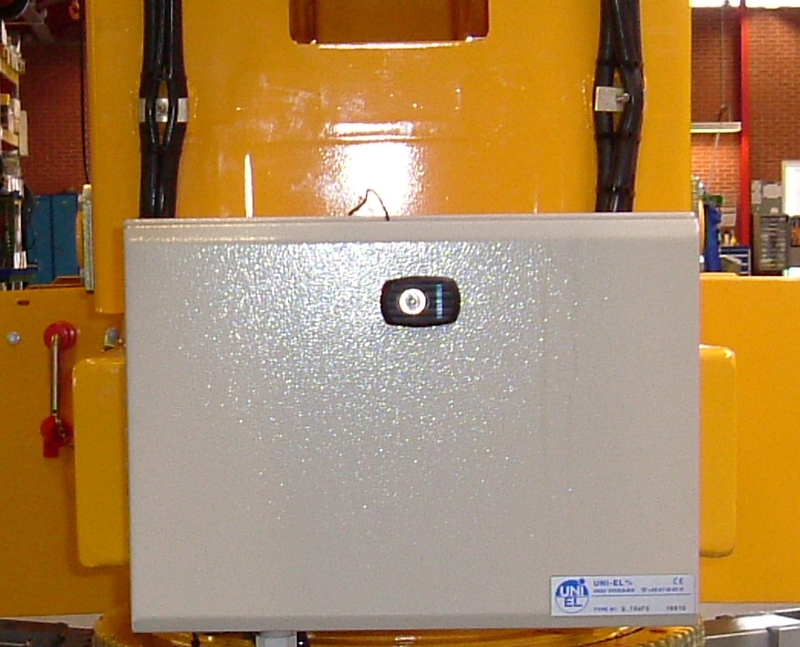

Transformer Option
