1930 RX
* Click on the image to view
Gradeability

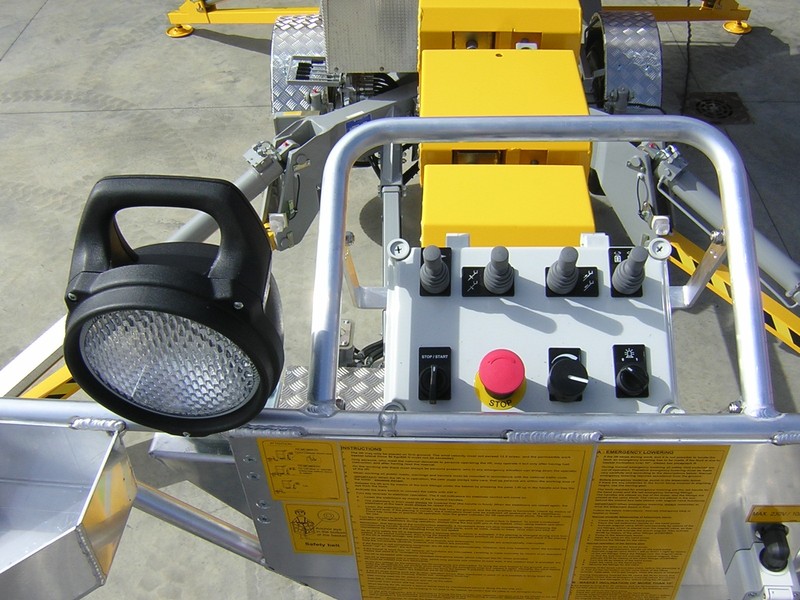

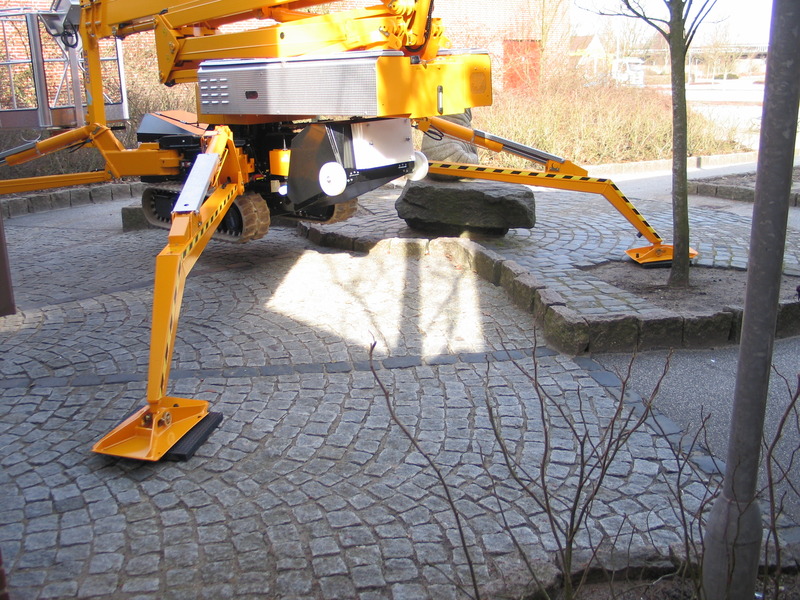

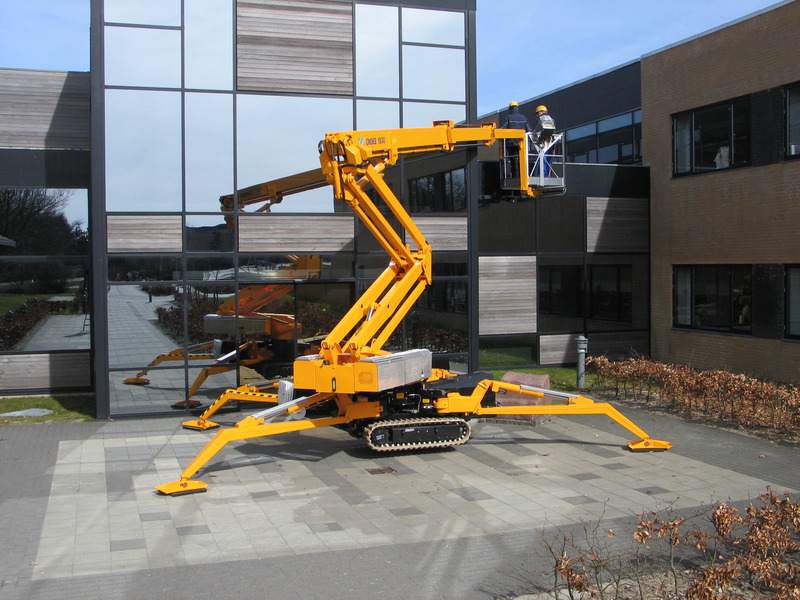

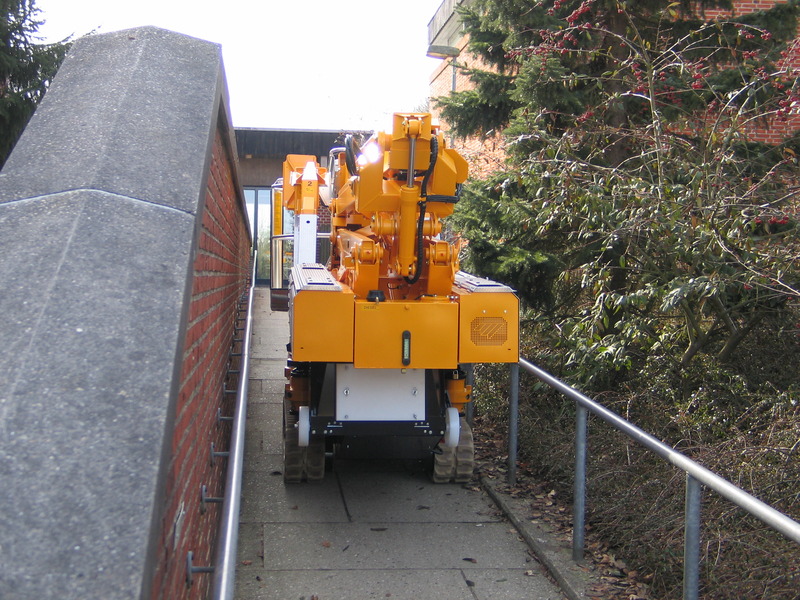

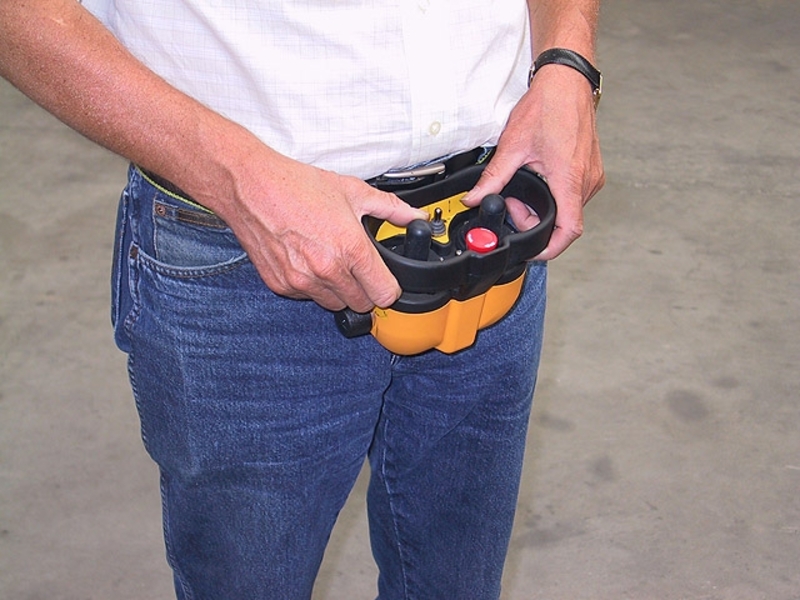

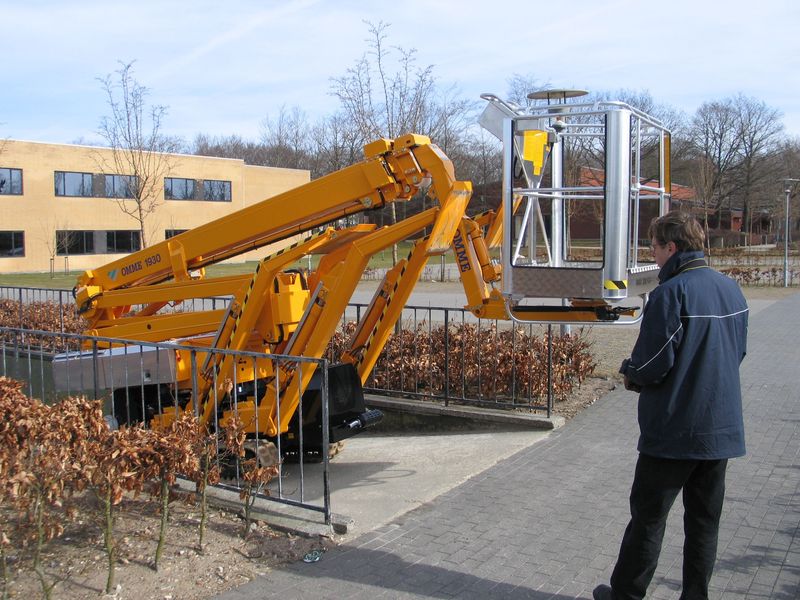

Type 1930 RXB and 1930 RXBD are identical apart from the power sources. Standard features include hydraulic stabilizers, turnable basket and proportional controls. The adjustable stabilizer spread provides substantial reduction in operational width. The platforms are equipped with an unfolding scissor system, giving the lift an increased up and over outreach over high obstacles. When operating the scissor system up and down the basket will follow a vertical line. Furthermore the lift has no tail swing at rotation. Electric wiring to the basket and the telescopic cylinder is protected inside the telescopic boom. The specially designed steel booms made from high and broad profiles allow greater outreach whilst maintaining a high degree of stability and rigidity. Being short in travelling length the platform is extremely manoeuvrable in narrow places. The self-propulsion system is electronically operated by proportional levers comfortably placed in a light weight mobile control box.

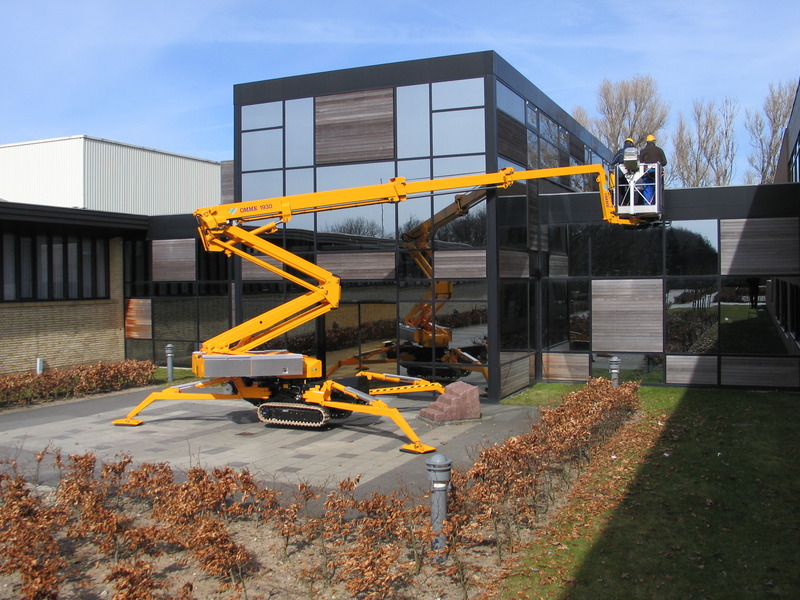

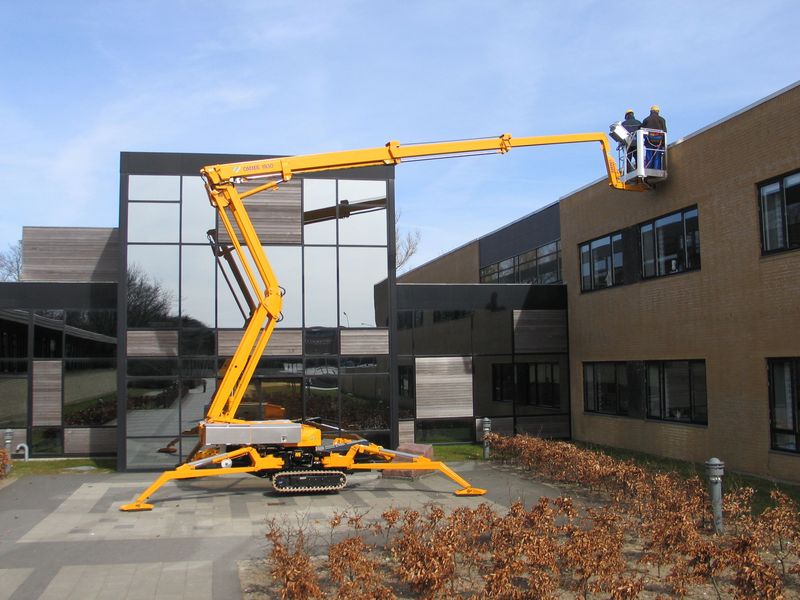

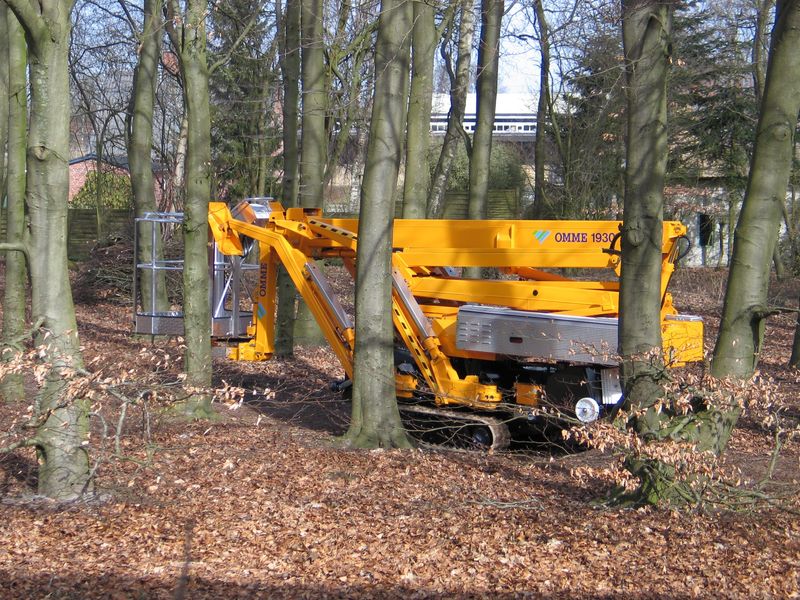

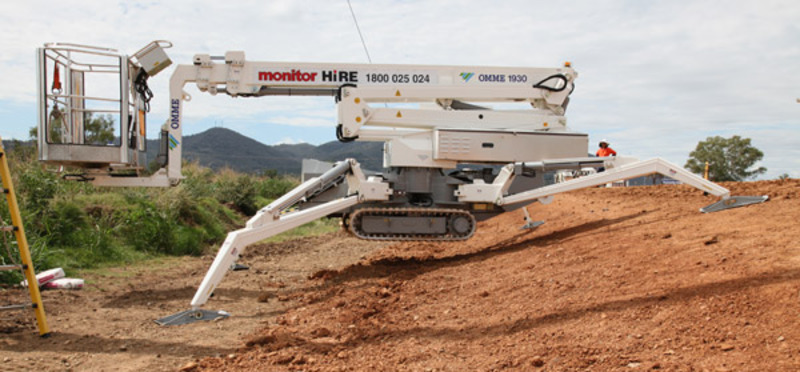

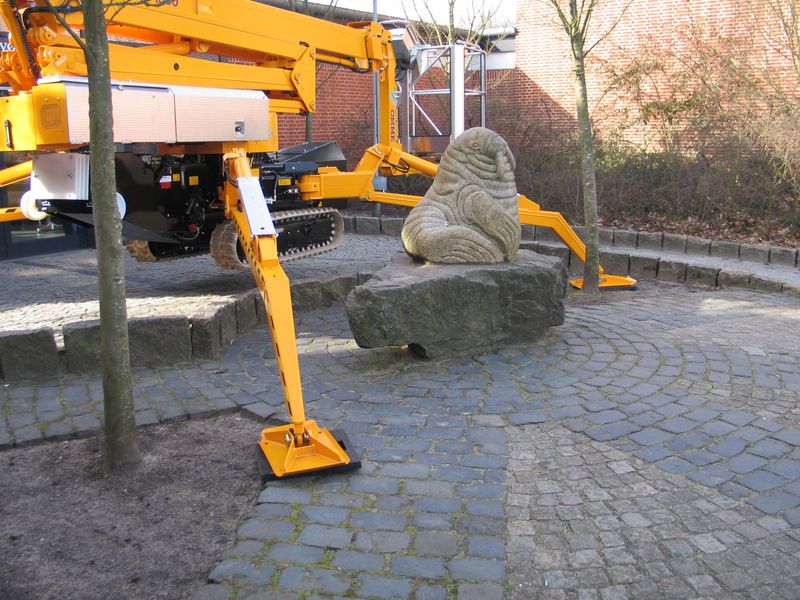

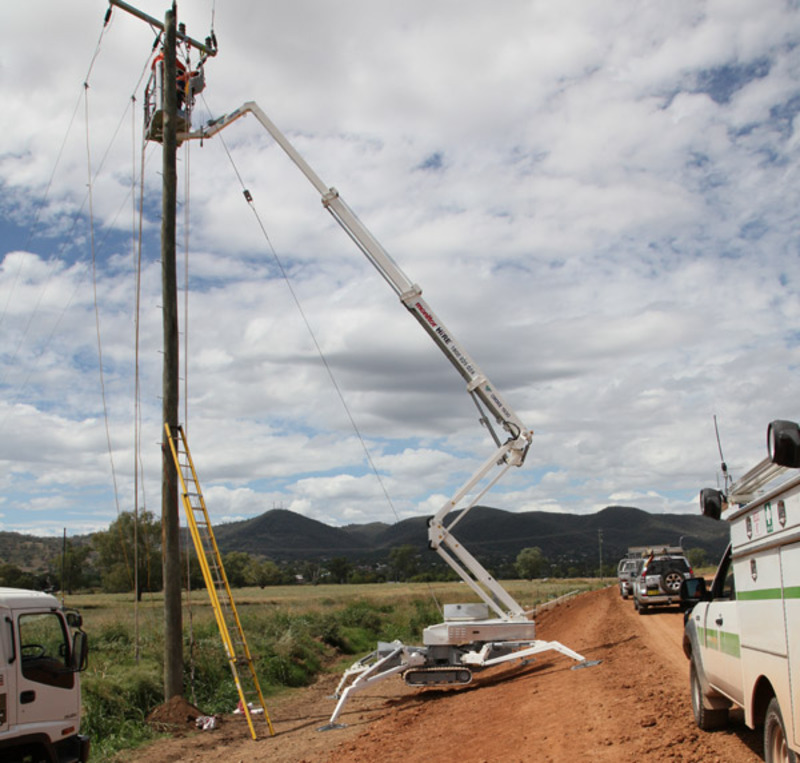

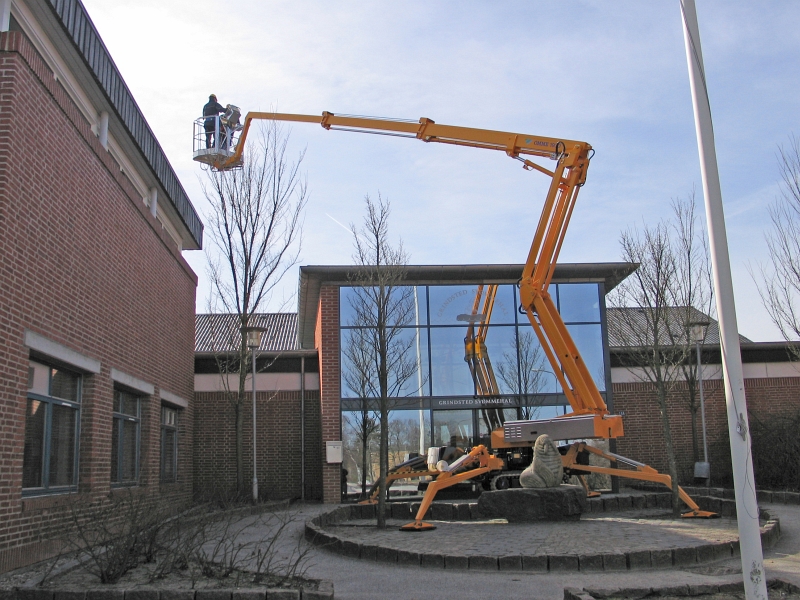

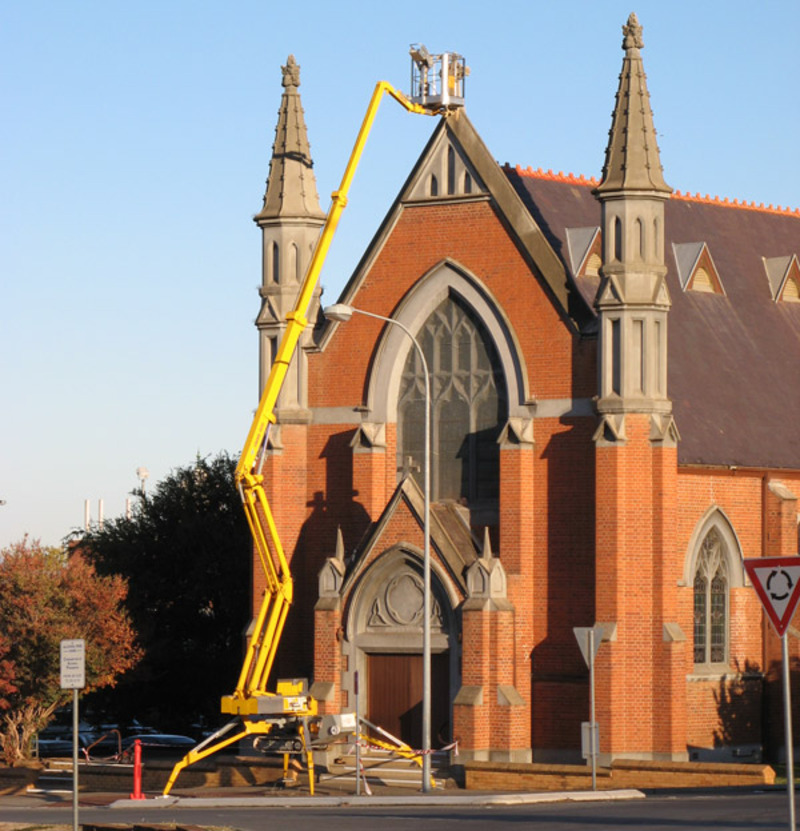

Crawlers at work:

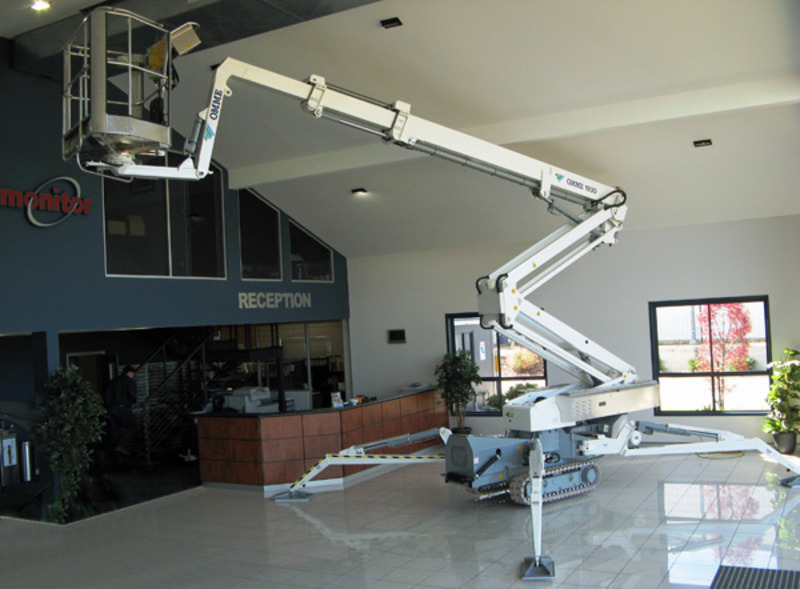

1930 RXB is powered by a heavy duty 24 v battery pack. In order to accomodate extreme and long term usage a transformer for direct mains connection is included. This type is especially suited for indoor operation.

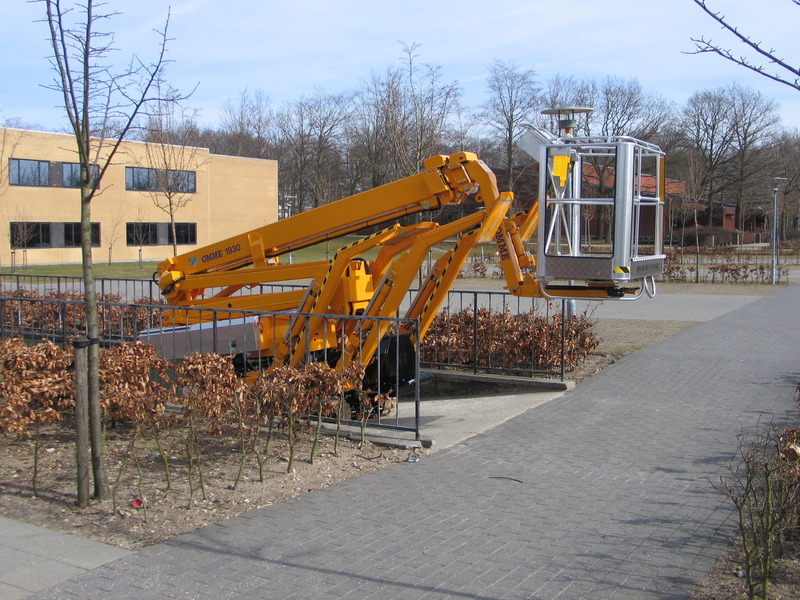

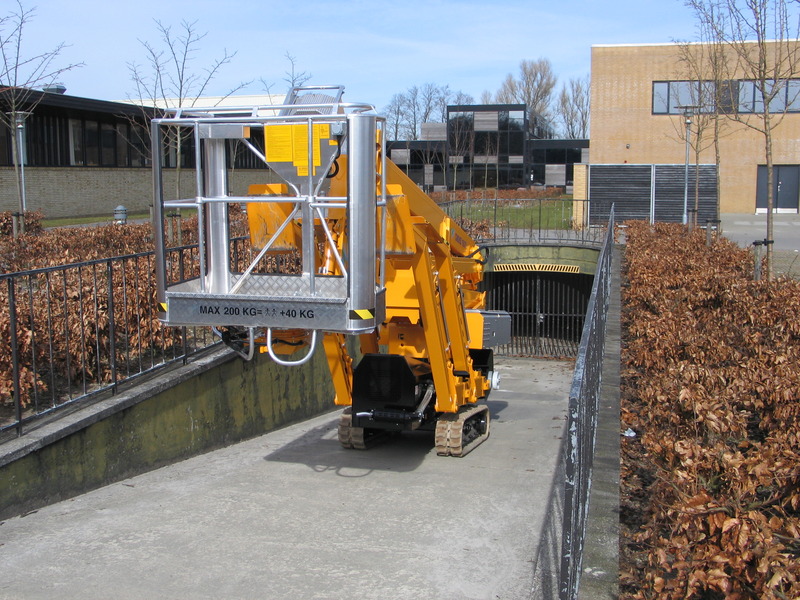

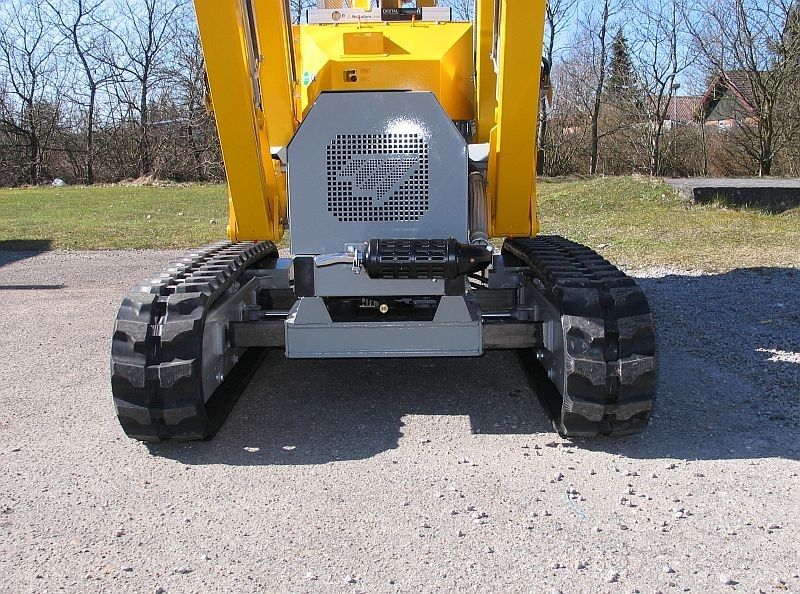

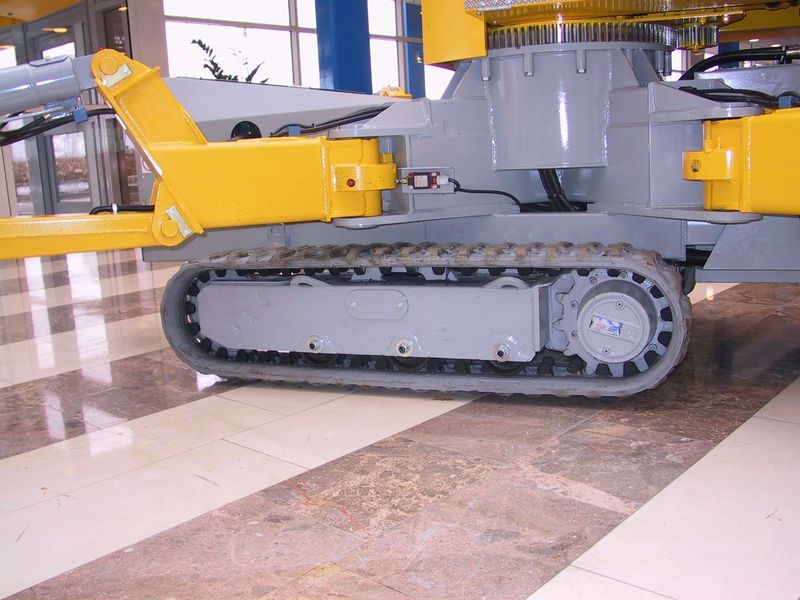

1930 RXBD is a battery and diesel engine bi-energy unit. This type is therefore suited for both indoor and outdoor usage. The diesel power pack provides an incredible gradeability of remarkable 35%, equivalent to 19.3°, an environment where lift deployment is also possible. Underlining the general stability is the easy self-propulsion manoeuvrability across a 25% (14°) slope. Combined with the strong, non-skid crawler belts this lift type is indeed go anywhere access.
Technical features |
||
---|---|---|

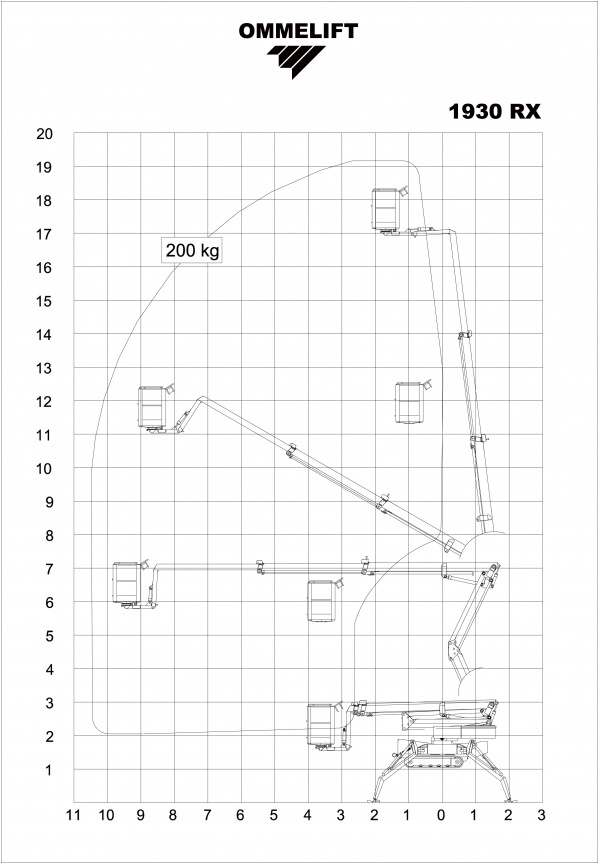

Max. working height | 19.1 m | |
Max. outreach | 10.2 m | |
Basket size | 1.25x0.8x1.1 m | |
Travelling length | 6.00/5.25 m | |
Travelling height | 2.07 m | |
Travelling width | 1.10 m | |
Operational width | 4.60 / 3.75 m | |
Rotation ± | 355° | |
Max. basket load | 200 kg | |
Total weight approx | 3150 kg | |
Turntable basket ± | 41° | |
Battery | 24 V 400 Ah/5h | |
Charger | 24 V 30 A | |
Crawler track length | 1.42 m | |
Transformer | 24 V 50 A | |
Generator | 24 V 22 A *1930 RXD | |
Gradeability across slope up to | 25 % 14.0 ° | |
Gradeability up and down slope u...p to | 35 % 19.3 ° | |
Deployment ability procent | 40 % 21.8 ° | |
Number of supporting rollers | 3 | |
Diesel motor | 14 kW 18.8 hp *1930 RXD | |
Adjustable tracks | Option | |
Automatic stabilizer levelling s...down | Option | |
Flash lights - crawler | Option | |
Non-marking tracks | Option | |
Spotlight in basket O16 | Option | |
Transformer - crawler | Option | |
Wireless remote control (drive o...nly) | Option |
